CNC20 Slant Bed CNC Lathe Machine

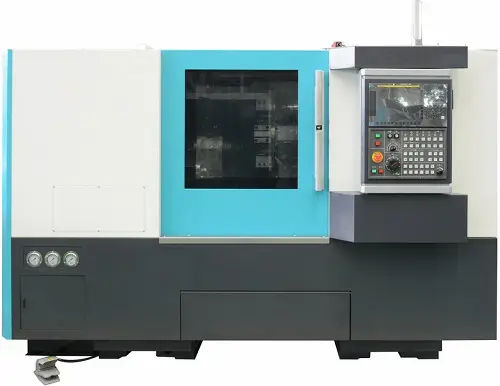

CNC20 Slant Bed CNC Lathe with Fanuc 0i TF Plus CNC control, 10.4″ screen, RS-232 interface and DNC function, 8″solid hydraulic 3-jaw chuck, Hydraulic tailstock,8 position hydraulic turret, Stepped horizontal positioned Z axis rail, THK Linear guide way.

Features of CNC20 Slant Bed CNC Lathe Machine

Fanuc 0i TF Plus CNC control, 10.4” screen, RS-232 interface and DNC function, 8” solid hydraulic 3-jaw chuck, Hydraulic tailstock,8 position hydraulic turret, Stepped horizontal positioned Z axis rail, THK Linear guide way, Coolant system, Enclosure Guarding,CE standard.

CNC20 Slant Bed CNC Lathe Machine Specifications

Item

CNC20

Main specifications

Max. swing over bed

440mm

Max. turning length

450mm

Max. turning diameter(shaft/disc)

260/300mm

Type of guideway

Linear

Headstock

Chuck size

8”

Spindle nose

A2-6

Spindle bore

62mm

Bar capacity

52mm

Spindle speeds

45 – 4500rpm

Spindle motor

11/15kW

Turret

Number of tool stations

8 Shank size for square tool

25x25mm

Index time (adjacent pocket)

0.25s

Index time (360°)

1.0s

Rapid travel

X axis

30m/min

Z axis

30m/min

Tailstock

Quill diameter

80mm

Quill inside taper

MT# 4

Quill travel

130mm

Tailstock travel

460mm

Accuracy

Positioning

X/Z: 0.011/0.011mm

Repeatability

X/Z: 0.004/0.004mm

Others

Machine size (rear chip conveyor)

2850 X 2920 X 1760mm

Machine size (side chip conveyor)

4150 X 1620 X 1760mm

Net weight

4500kg

CNC20 Slant Bed CNC Lathe Machine Equipments

Item 01

Descriptions

01.01 Fanuc 0i TF Plus CNC control, 10.4” screen

01.02 8” solid hydraulic 3-jaw chuck

01.03 8 position hydraulic turret

01.04 Stepped horizontal positioned Z axis rail

01.05 THK Linear guide way

01.06 Belt type lift-up chip conveyor and chip bucket

01.07 Hydraulic tailstock

01.08 Coolant system

01.09 Enclosure Guarding

01.10 RS-232 interface and DNC function

01.11 Tools

CNC20 Slant Bed CNC Lathe Machine Optionals

Item 02

Descriptions

02.01 8”Thru-hole chuck and cylinder

02.02 Tool Setter (RENISHAW)
